Product Specifications

Brand Name: APWIKOGER
Model: H5577
Origin: Mainland China
Certification: None

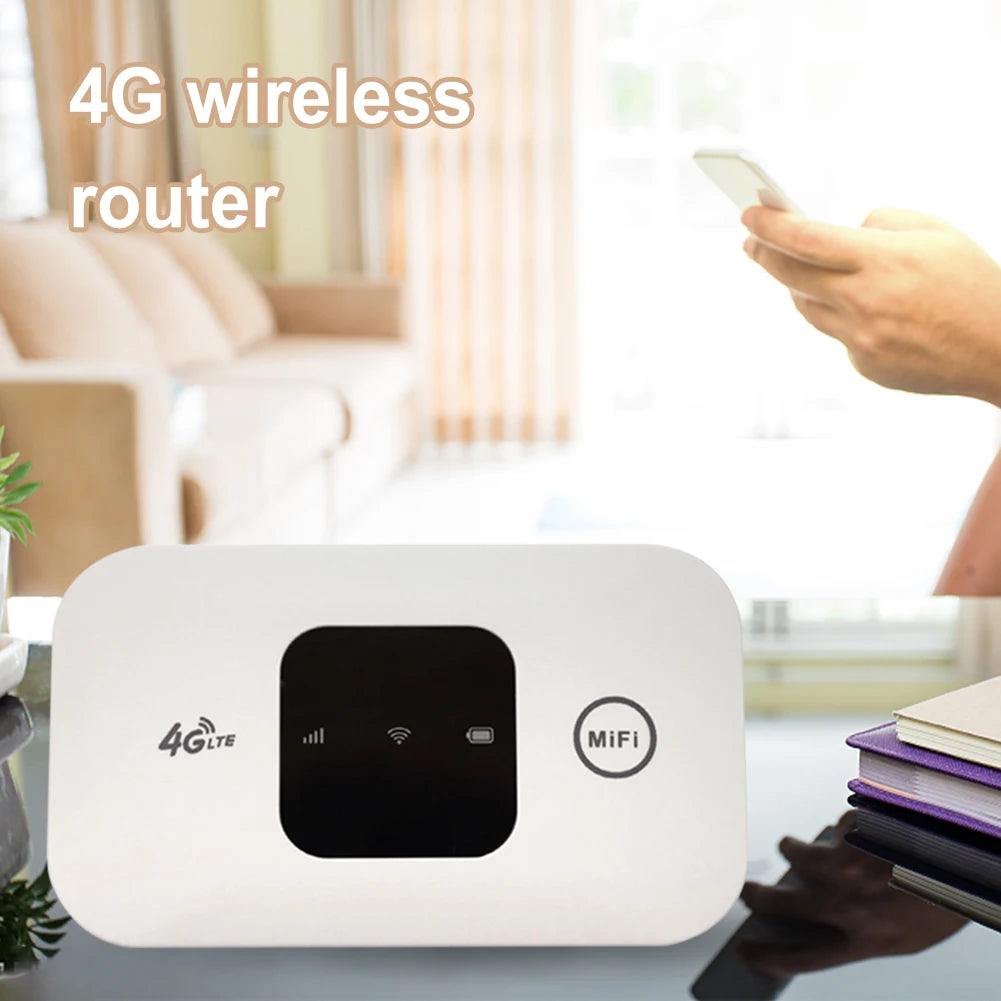

Type: Wireless 4G Pocket WiFi Router
Application: Mini WiFi
Recommended Uses: Home, Travel, Office
With Modem Function: No

Network & Connectivity
Antenna Type: Internal
Frequency Band Class: Single-Band
Supported Frequency: 2.4GHz
Wireless Standard: 802.11 b/g/n
Wireless Transmission Rate: Up to 150Mbps
Support Mesh: Not Supported

4G Network Support
Supported Bands: B1 / B3 / B5 / B40
FDD-LTE: Cat4 up to 150Mbps download / 50Mbps upload
TDD-LTE: Cat4 up to 130Mbps download / 35Mbps upload
WCDMA: Download up to 21Mbps / Upload up to 5.76Mbps
Protocols: LTE FDD/TDD Version 9 (3GPP / 3GPP2)

Performance & Capacity
Maximum Connected Devices: 8–10 users
Wireless Technology: MIMO
RF Chip: RTR1605
Wireless Transmission Power:
FDD-LTE 21dbm ±2db
TDD-LTE 21dbm ±2db
WCDMA 21dbm ±2db

Battery & Power
Battery Type: Lithium Battery
Battery Capacity: 2100mAh
Interface: USB

Compatibility
Browser Support: Web cross-browser compatibility
SIM Card Slot: Yes

Environmental Conditions
Working Temperature: -10°C to 60°C
Working Humidity: 5%–65%
Storage Temperature: -30°C to 80°C
Storage Humidity: 5%–95%

Product Size
Dimensions: 98 × 53 × 8 mm (3.86 × 2.09 × 0.31 inches)

Key Features
High-Speed Internet: Provides fast and stable 4G connectivity for browsing, streaming, and downloads.
Wide Network Compatibility: Supports multiple frequency bands for flexible carrier use.
Stable WiFi Connection: Supports multiple devices simultaneously with reliable wireless performance.
Portable Design: Compact size with a long-lasting battery, ideal for travel and remote work.
Easy Setup: Simple SIM insertion and web-based configuration.

How to Use
Step 1: Push down the rear cover.
Step 2: Insert the SIM card with the chip facing downward.
Step 3: Connect the router to a power source via USB.
Step 4: Connect your device to the WiFi network.
Step 5: Open 192.168.100.1 in a browser to modify WiFi name, password, and APN settings.

Package Includes
Router: 1 × 4G Pocket WiFi Router
Battery: 1 × 2100mAh Lithium Battery
Cable: 1 × Data Cable
Manual: 1 × Instruction Manual

Important Notes
Please confirm that your local network frequency bands are compatible before purchasing.
Actual product colour may vary slightly due to lighting and display differences.
Allow a 1–2cm measurement deviation due to manual measurement.
